Removing and installing/replacing right front fog light (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow INSTRUCTIONS for handling light bulbs (exterior lights).
- Partially release front wheel arch, (front section) COVER .
NOTE:
Perform operations on right side the same as the left side shown, use graphics in mirror image.
Only on version without auxiliary radiator:

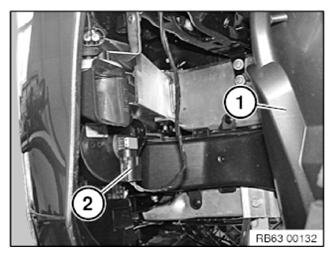

Fold wheel arch cover (1) back.
Unfasten plug connection (2) and disconnect.

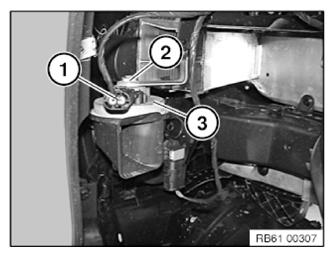

Unfasten plug connection (1) and disconnect.
Release nut (2) and remove fanfare (3).

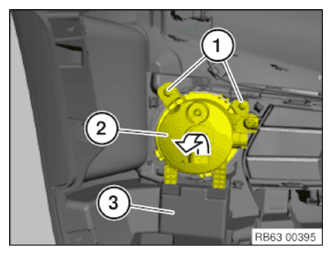

Release screw (1).
Tightening torque 63 12 2AZ .
Remove fog light (2) out of bumper panel (3) in direction of arrow.
Installation note:

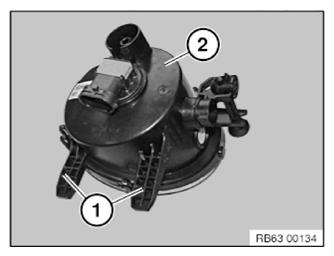

Guides (1) on fog light (2) must not be damaged or missing.
On replacement of fog light or bumper panel at front:
- If necessary, convert BULB .
- Adjust FOG LIGHTS .
