Replacing halogen bulb for right fog light (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow NOTES for handling light bulbs (exterior lights).
Necessary preliminary work:
For version with additional wheel arch radiator or "Luxury Line" equipment specification:
- Partially remove front WHEEL ARCH COVER
.
All other versions:
- Remove ORNAMENTAL GRILLE in bumper panel towards the side.
NOTE:
Wheel arch panel is shown removed for purposes of clarity.

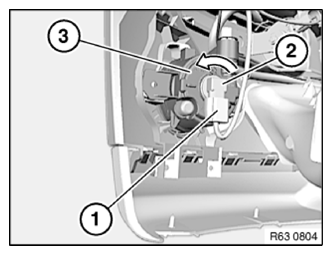

Unlock plug connection (1) and disconnect.
Turn bulb holder (2) in direction of arrow and remove from fog light (3).
Unlock plug connection (1) and disconnect.
Turn bulb holder (2) in direction of arrow and remove from fog light (3).
Installation note:
Note BULB TYPE .
