Replacing halogen bulb for left fog light (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow INSTRUCTIONS for handling light bulbs (exterior lights).
Necessary preliminary tasks:
- Partially detach front wheel ARCH COVER .
NOTE:
Wheel arch panel is shown removed for purposes of clarity.

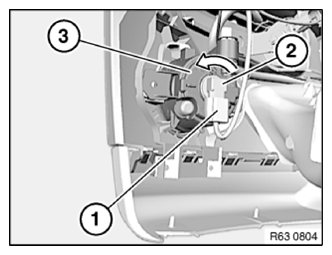

Unfasten plug connection (1) and disconnect.
Turn bulb holder (2) in direction of arrow and remove from fog light (3).
Installation note:
Note BULB TYPE .
