Removing and installing/replacing left spindle drive (automatic tailgate activation) (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Determine and NOTE down opening height of automatic luggage compartment lid actuation
Adjust tailgate to maximum opening angle. The spindle drive may only be removed or installed when the tailgate is open to the maximum.
Remove left (d-pillar) rear roof pillar TRIM PANEL
Remove left rear window frame COVER

WARNING: In the event of customer complaints:

Rattling when opening and closing
Drive not functioning
Drive is blocked or sluggish
No longer closes or opens

Or if incorrect operation is suspected:

Rear lid was closed with excessive exertion of force
Bent, broken piston rod
Broken ball head

The compression spring must be secured against unintentional sudden release .

WARNING: Observe warning notices on the damper.

Electric spindle drive for rear lid is under mechanical spring bias!

The component must be secured against falling down.

Attention !

Risk of damage to spindle drive!

If spindle drive has been electrically disabled (e.g. connector unplugged) the tailgate must only be moved slowly by hand.

Version with panorama glass roof:

Remove rear left GRAB HANDLE .

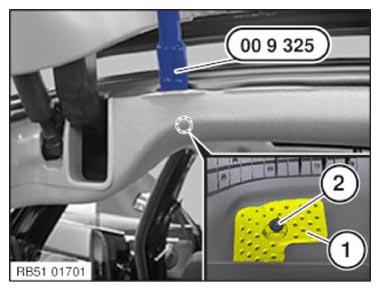

Insert special tool 00 9 325 towards the rear of headlining as illustrated and position on reinforcement (1).

Slightly strike special tool 00 9 325 towards the bottom and thus release clip (2).

Installation note:

Replace faulty clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

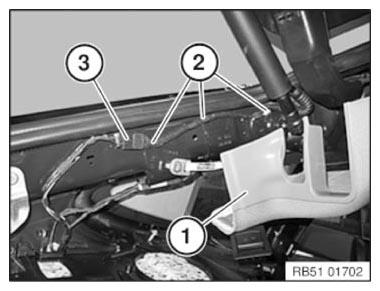

Press headlining (1) slightly towards the bottom and unclip cable clip (2).

Disconnect plug connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Danger of injury !

Support rear lid in fully opened position with suitable apparatus.

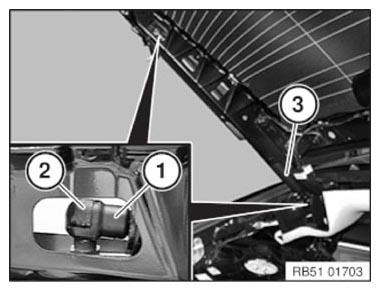

Disassemble BALL SOCKET (1) with clamp (2).

Feed out spindle drive (3) towards the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks:

Initialize automatic operation of tailgate using the service function in the diagnosis system using an appropriate scan tool.

Selection via:

Body

Automatic tailgate operation

Power tailgate initialization

Check the opening angle setting of the tailgate and restore the customer setting if necessary.
