Removing and installing/replacing support for left or right outer door handle without lock barrel (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close side window if necessary
Remove front door outer DOOR HANDLE .
Release rear part of front door SOUND INSULATION

Disconnect Bowden cable at bottom (1) and top (3) from door lock (2).

IMPORTANT: Door cannot be opened if Bowden cable is incorrectly laid.

Installation note:

Bowden cable must be correctly engaged in locators in door lock (2).

Bowden cable must be laid without kinks in bend to door lock (2).

Seal (4) must be correctly fitted on Bowden cable.

Carry out function check with door open.

G04760960

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seals (1) in direction of arrow.

Release screw (2) and remove holder (3) to outside.

G10142393

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release cable clip from support (1).

Remove inner carrier (1) in direction of arrow.

G04752617

Courtesy of BMW OF NORTH AMERICA, INC.

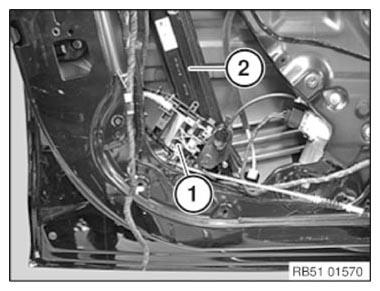

Rotate support (1) and feed out between door and window lift rail (2).

G10176785

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unclip Bowden cable (1) in area (A) and maneuver out of support (2).

Installation note:

Ensure that the Bowden cable (1) is correctly routed at support (2).

Version with Comfort Access/light package

Remount front door outside DOOR HANDLE LIGHT .

G10097122

Courtesy of BMW OF NORTH AMERICA, INC.
