Removing and installing/replacing door handle light on left or right front door (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front SUPPORT for left or right outer door handle with lock barrel or SUPPORT for left or right outer door handle without lock barrel.
NOTE:
Graphic shown on the F30 by way of example

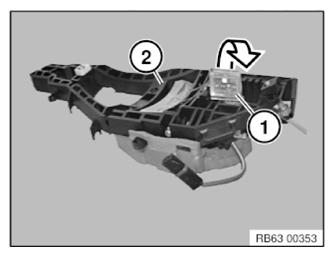

Feed out outside door handle light (1) with cable from support for outer door handle (2).
Feed out outside door handle light (1) with cable from support for outer door handle (2).
Installation note:

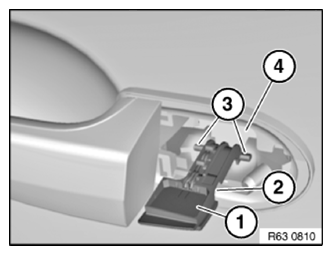

Make sure door handle light (1) is correctly positioned in area (2).
Guides (3) of door handle light (1) must be seated in support for outer door handle (4).
