Removing and refitting (replacing) rear bumper underneath trim (M Aerodynamics package) (330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

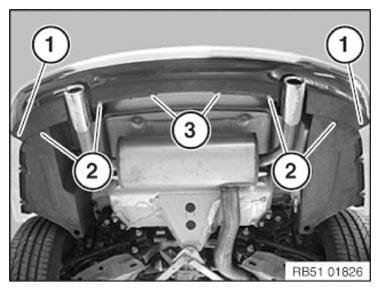

Release expansion rivet (1).

Unfasten screws (2).

Loosen clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.

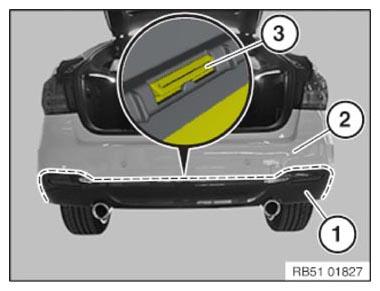

Press special tool 00 9 321 between cover (1) and bumper trim (2) so as to release catches (3).

If necessary, unfasten and disconnect electrical connectors on ultrasound sensors.

Installation note:

Latch mechanisms (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Swap over REFLECTORS .

Swap over ULTRASONIC SENSORS .
