Removing and installing/replacing support for front bumper panel (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove front BUMPER PANEL .
- Remove IMPACT ABSORBER from support

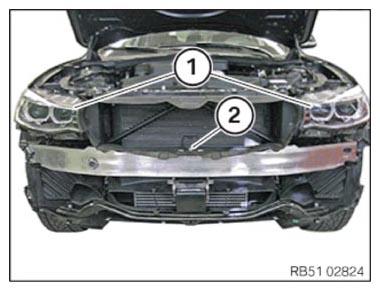

Remove RIGHT HEADLIGHT , LEFT (XENON) HEADLIGHT , LEFT HEADLIGHT , LEFT HEADLIGHT (ADAPTIVE HEADLIGHT) , RIGHT HEADLIGHT (ADAPTIVE HEADLIGHT) or RIGHT HEADLIGHT (XENON) .
Release screw (2) and remove associated holder.

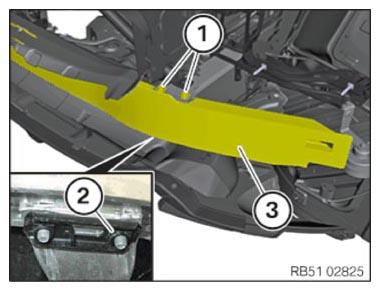

Release screws (1) on left/right and remove associated nut plate (2).
Tightening torque 51 11 4AZ .
Remove support (3) towards front.

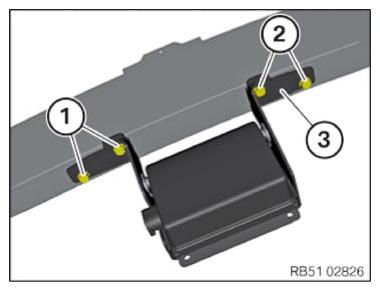

In the case of replacement ACC version:
Repair instruction refer to: REMOVING AND INSTALLING/REPLACING SUPPORT FOR FRONT BUMPER PANEL
