Installing the integrated power supply module

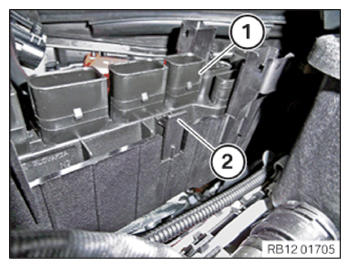

• Position the integrated power supply module (1).
• Engage the integrated power supply module (1) at the retaining clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
• Refer to CONNECTING BATTERY GROUND LEAD .
