Removing the control unit bracket for cylinders 1 to 4
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE ACOUSTIC COVER .

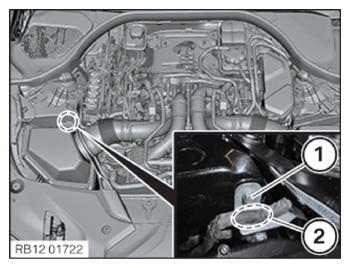

- Loosen screw (1).
- Loosen the cable clip (2).
- Loosen screw (1).
- Disengage the wires and connectors (1) upwards on the adapter plate.
- Unlock and disconnect plug connections (1).
- Unlock and disconnect plug connections (1).
- Loosen the cable clip (1).
- Guide out and remove the control unit bracket (1) with the control units upwards.
