Installing wiring harness section for ignition system of bank 2

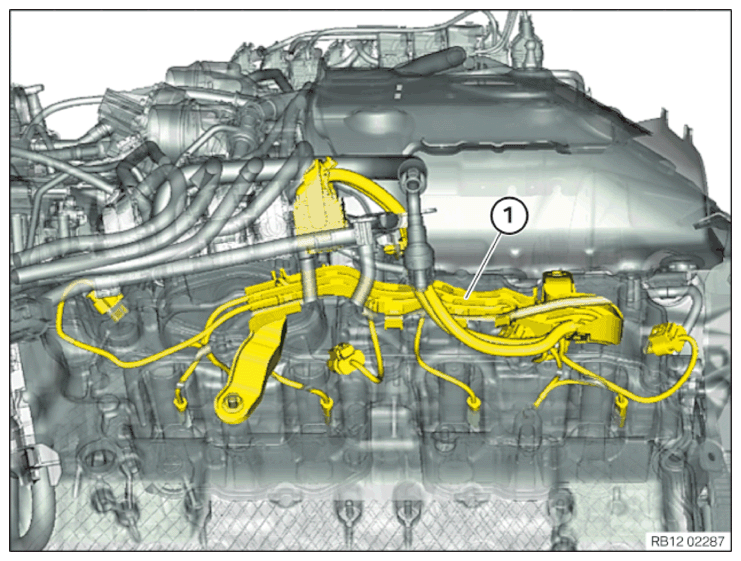

Wiring harness section for the ignition system of cylinder bank 2
- Guide in and position the wiring harness section for the ignition system of cylinder bank (2) .
- Position ground cable (2) .
- Tighten nuts (1) .
TIGHTENING TORQUES SPECIFICATION
| Ground cable to hold-down device | ||
| Nuts | Tightening torque | 5.5 Nm |
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

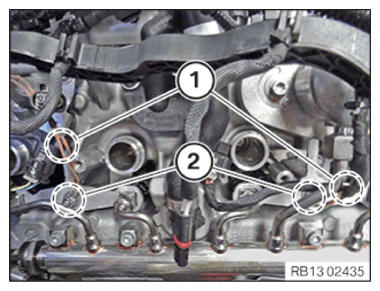

- Check all connectors (1) on the injectors again to ensure they are correctly fitted.
- Check that all connectors are plugged in correctly.
Install the ignition coils of cylinder bank 2
NOTE:
RISK OF DAMAGE
Damage to the ignition coil .
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil .
Damage to the ignition coil .
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil .
- When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
- Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- Feed in the ignition coils (2) and install them.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Ignition coil | ||
| screw | Tightening torque | 8 Nm |
- Feed in and install the cable clip (3) .
- Tighten down screw (2) .
TIGHTENING TORQUES SPECIFICATION
| Wiring harness to cylinder head cover | ||
| M6x16 screw | Tightening torque | 8 Nm |
- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Wiring harness to cylinder head cover | ||
| M6x16 screw | Tightening torque | 8 Nm |
- Connect and lock connectors (arrows).
The connectors (arrows) must audibly engage.
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Unlock and disconnect the connectors (2) from the injectors with a small slotted screwdriver (1) .
- Unlock the lock in the direction of the arrow with a small slotted screwdriver (1) . Disconnect the connector (2) on the connector housing from the injector.
- Before installing the ignition coils: Fuse the spark plug shafts (2) out with an air gun (1) .
The spark plug shafts must be free from oil, fuel residue, and coolant residue.
Follow-up work
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING BATTERY GROUND LEAD .
