Remove the transmission wiring harness
WARNING:
Hot fluids
.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE .
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE .
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Removing the cover of the rear right engine compartment.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING: Unprotected battery terminals. Risk of short circuits! Risk of fire!- Cover the vehicle battery
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Cover the vehicle battery with the special tool 2 452 007 as shown.
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE CONTROL UNIT BRACKET FOR CYLINDERS 1 TO 4 .
- Refer to REMOVING EXPANSION TANKS FOR THE CHARGE AIR COOLERS .
- Refer to REMOVING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 1 .
- Refer to REMOVING VACUUM PUMP .

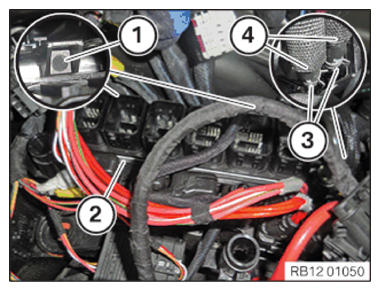

- Unlock and disconnect plug connections (1).
- Disengage clip of the wiring harness (1) with conventional expanding rivet jack.
- Disengage the engine wiring harness on the holder (2).
- Unlock transmission wiring harness in area (1) and disengage upwards.
WARNING:
Working on fuel system
.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
CAUTION:
Contact with hazardous substances
.
Health impairment .
Health impairment .
- Note and comply with the Safety Instructions on the containers and the instructions on the manufacturer's safety data sheet.
- Conduct all work in appropriate personal protective equipment only.
- Unlock and disconnect the tank vent line (2).
- Disengage holder (1) of the transmission wiring harness upwards.
- Disengage transmission wiring harness (2) from the holders (1).
- Detach transmission wiring harness and position on the cylinder head cover of cylinder bank 1.
Removing the front underbody protection
Removing the front underbody protection
- Release all bolts (arrows).
- Push the front underbody protection (1) to the front slightly and guide out under the thrust field (2).
Removing the stiffening plate
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
- Loosen screws (1).
- Remove screws (arrows).
- Pull out and remove the thrust field (3) on the covers of the steering assembly (2).
Remove transmission cross-member .
- Support the transmission using special tools 0 495 498 (23 4 050) and 2 219 012 .
- Secure the transmission with the luggage strap (1).
- Release the screw (1) and remove.
Loosen screws (2).
- Remove the transmission cross member (3).
- Undo wiring harness (2) at the clips (1).
- Disconnect cable tie (1).
- Unlock plug connection (3) and disconnect.
- Disengage latch mechanisms of the transmission wiring harness (2).
- Disengage latch mechanisms of the transmission wiring harness (1).
- Disengage latch mechanisms of the transmission wiring harness (1).
- Loosen screw (2).
- Disengage latch mechanisms of the transmission wiring harness (1).
- Turn connector with bayonet fitting (2) counter-clockwise and disconnect.
- Unlock plug connection (1) and disconnect.
- Detach transmission wiring harness.
