Remove the knock sensors on the right
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING THE COVER FOR THE STEERING ASSEMBLY ON THE RIGHT .

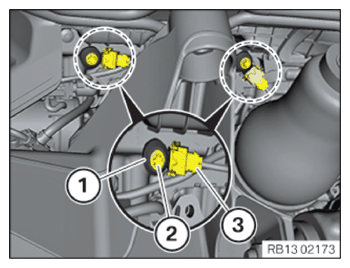

- Unlock and disconnect the plug connections (3) .
- Loosen screws (2) .
- Remove knock sensors (1) .
