Remove the DME control unit of cylinders 5 to 8
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE ACOUSTIC COVER .
- Unlock and disconnect plug connections (1).
- Disengage the cable bracket (2) upwards from the adapter plate.

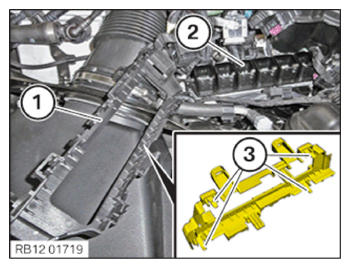

- Unlock the adapter plate (1) at the detents (3) and set aside.
- Remove DME control unit (2).
