Removing intake camshaft sensor of cylinder bank 1

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING THE CONTROL UNIT BRACKET FOR CYLINDERS 1 TO 4 .

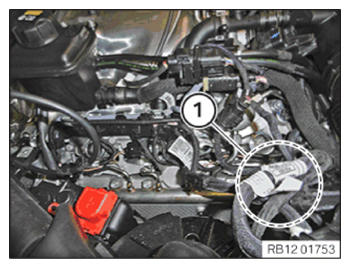

• Set the wiring harness in area (1) aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Removing intake camshaft sensor of cylinder bank 1 (2)

Courtesy of BMW OF NORTH AMERICA, INC.
