Remove the intake camshaft sensor of cylinder bank 2

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
• Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .

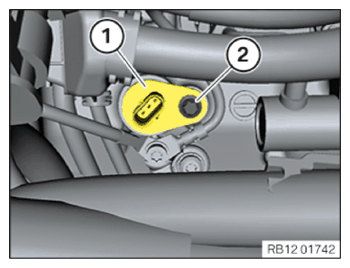

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (2).

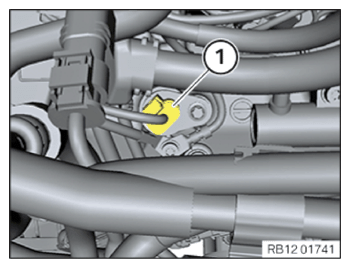

• Remove the intake camshaft sensor of cylinder bank 2 (1).

Courtesy of BMW OF NORTH AMERICA, INC.
