Installing exhaust camshaft sensor of cylinder bank 1

Checking the sealing ring on the camshaft position sensor

Check

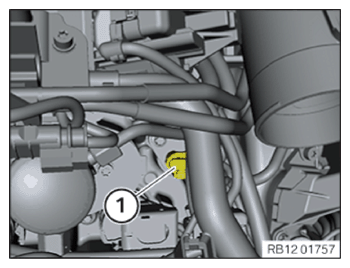

• Check the O-ring (1)  on the camshaft position sensor for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» O-ring (1)  damaged

Measure

• Replace O-ring (1)  .

Parts:  O-ring

Result

» O-ring (1)  not damaged.

Measure

• Continue the repair in the next step.

• Coat O-ring on the camshaft position sensor with motor oil.

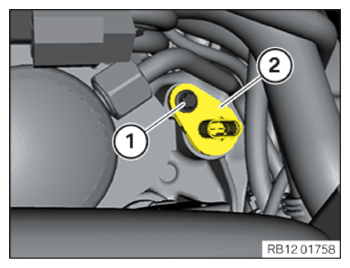

• Position exhaust camshaft sensor of cylinder bank 1 (2)  .
• Tighten down screw (1)  .

Camshaft position sensor
M6x16 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
