Installing the exhaust camshaft sensor of cylinder bank 2
Checking the sealing ring on the camshaft position sensor
Check

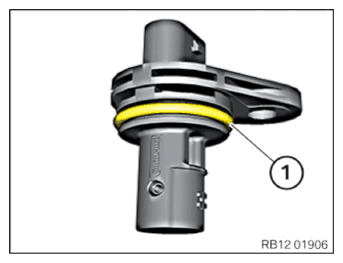

- Check the O-ring (1) on the camshaft position sensor for damage.
Result
» O-ring (1) damaged
Measure
- Replace O-ring (1).
Parts: O-ring
Result
» O-ring (1) not damaged.
Measure
- Continue the repair in the next step.

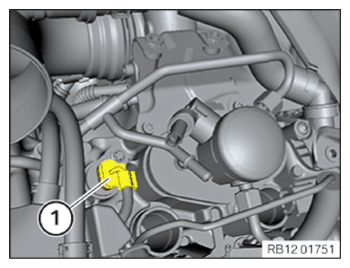

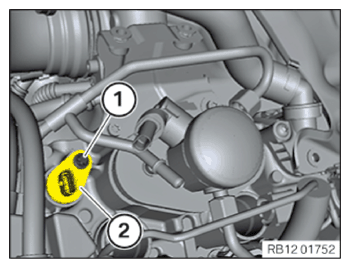

- Position the exhaust camshaft sensor of cylinder bank 2 (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Camshaft position sensor | ||
| M6x16 screw | Tightening torque | 8 Nm |
TIGHTENING TORQUES SPECIFICATION
| Fuel delivery line | ||
| Coupling nut | Tightening torque | 30 Nm |
WARNING:
Working on fuel system
.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
TECHNICAL INFORMATION
Wear protective gloves.
Wear protective gloves.
NOTE:
TECHNICAL INFORMATION
Wear safety goggles.
Wear safety goggles.

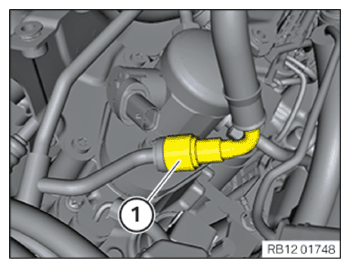

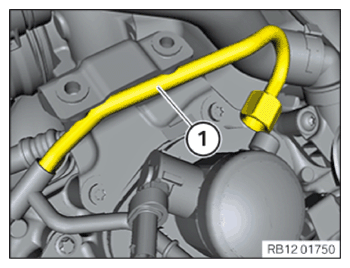

- Connect and lock the fuel line (1).

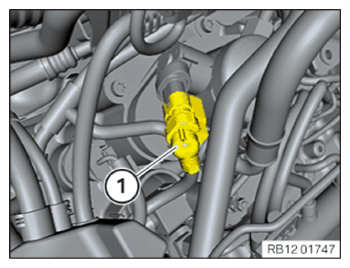

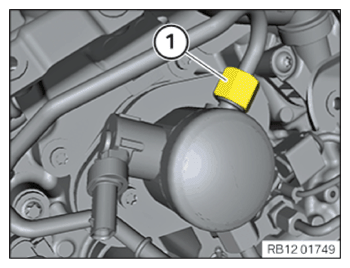

- Connect connectors (1) and lock.

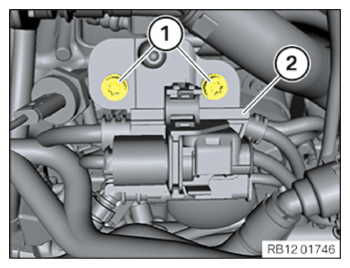

- Position the holder for the sensor system (2).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Holder of sensor system | ||
| M6x16 screw | Tightening torque | 10 Nm |

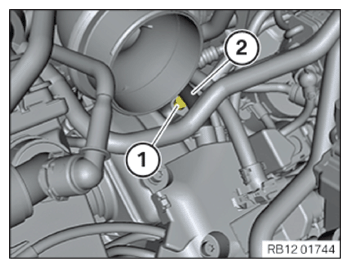

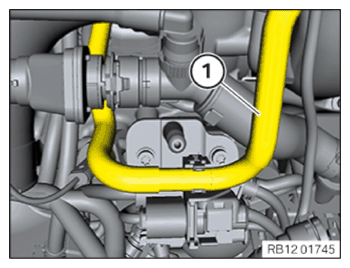

- Position the coolant line (1) and clip it in.
- Push the line (2) to the side.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Fuel line | ||
| M6x16 | Tightening torque | 10 Nm |

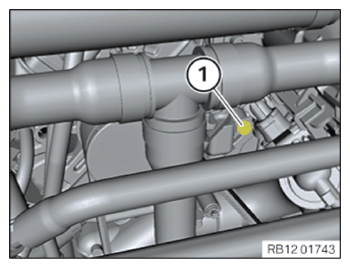

- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Fuel line | ||
| M6x16 | Tightening torque | 10 Nm |
Follow-up work
- Refer to MOUNTING THE FUEL SUPPLY LINE .
- Refer to CONNECTING THE CONNECTOR OF THE INJECTORS OF CYLINDER BANK 2 .
- Refer to INSTALLING THE IGNITION COILS OF CYLINDER BANK 2 .
- Installing conduit on bank 2.
- Clip the wiring harness (2) into the clamps (1).
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING BATTERY GROUND LEAD .
