Remove left tank vent valve
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
Preliminary work
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
- Refer to REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to DRAINING THE COOLANT FROM THE COOLANT PUMPS .
- Refer to REMOVING LEFT CHARGE AIR COOLER .

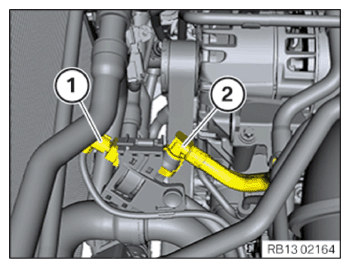

- Unlock and disconnect the quick-release coupling (2).
- Unlock plug connection (1) and disconnect.

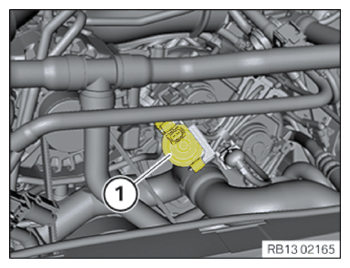

- Disengage the tank vent valve (1) from the holder.

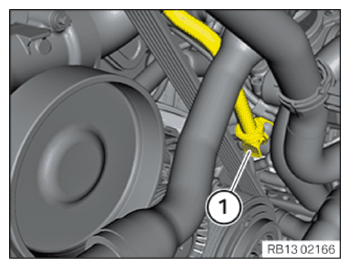

- Unlock and disconnect the quick-release coupling (1).
- Guide out tank vent valve upwards.
