Installing clean air pipe of cylinder bank 1

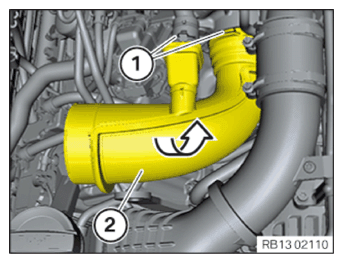

• Position the clean air pipe of cylinder bank 1 (2) in direction of arrow and slide it on.

  The retaining clips (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

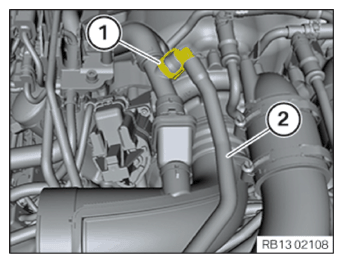

• Position the tank vent line (2) and push it on.

The tank ventilation line (2) must be audibly locked to the catch (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

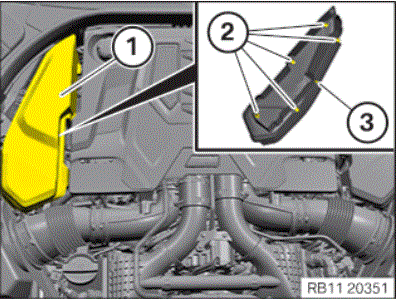

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
