Installing the right-hand charge air cooler

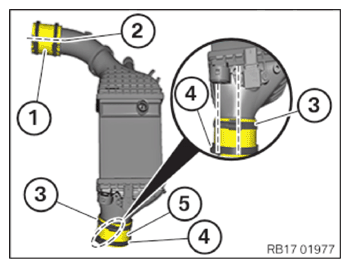

- Replace hose (1).
Parts: Hose
- Position hose (1) with hose clamps (2) as shown.
- Replace hose (5).
Parts: Hose
- Position the hose (5) and the hose clamp (3) (diameter 60-80 mm) at the top.
- Ensure that the hose clamp at the top (3) in the area of threaded connection is aligned with the screw on boost pressure sensor.
- Position hose clamp (4) on hose (5) (diameter of 77-84 mm) at the bottom.
- Ensure that the hose clamp at the bottom (4) in the area of the threaded connection is aligned with the rubber mount on the charge air cooler.
- Guide in and position charge air cooler (1) at the bottom.
- Tighten the hose clamps (1) on the charge air cooler (2).
TIGHTENING TORQUES SPECIFICATION
| hose | ||
| hose | Tightening torque | 3.5 Nm |
- Position the connecting plate (2) between the charge air coolers.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Connecting plate of charge air cooler | ||
| screw | Tightening torque | 6.5 Nm |
- Connect connectors (2) and lock.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Charge air cooler top | ||
| M6x30 screw | Tightening torque | 10 Nm |

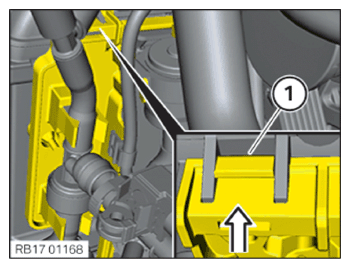

- Snap line (1) into holder (2).
- Position the centering pin (1) on the holder downwards in lug (2) on the charge air cooler.
- Engage the holder (1) on the charge air cooler.
- Carefully position the line (1).
- Connect connectors (2) and lock.
- Connect the line (1) and lock.
- Connect hose (2).
The retaining clip (1) must snap-in audibly.
- Connect the line (1) and lock.
- Tighten hose clamp (3).
TIGHTENING TORQUES SPECIFICATION
| hose | ||
| hose | Tightening torque | 3.5 Nm |
- Tighten hose clamp (4).
TIGHTENING TORQUES SPECIFICATION
| hose | ||
| hose | Tightening torque | 3.5 Nm |
- Position holder (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Charge air cooler bottom | ||
| M6x18 screw | Tightening torque | 10 Nm |
- Slide the hose (2) onto the studs of the charge air cooler.
- Replace the hose clamp and the hose.
Parts: Hose clamp with hose
- Tighten the hose clamp (3).
- Feed the hose (1) into the holder on the charge air cooler (4).
- Slide the hose (2) onto the studs of the charge air cooler.
- Replace the hose clamp and the hose.
Parts: Hose clamp with hose
- Tighten the hose clamp (3).
- Thread in the hose (1) in the holder on the charge air cooler (4).

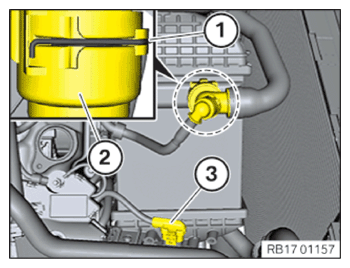

- Attach the coolant lines (2).
The retaining clip (1) must snap-in audibly.
Follow-up work
- Refer to INSTALLING OIL FILLER NECK .
- Refer to CLOSING THE COOLANT PUMPS .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
