Installing the right throttle body

Replacing the seal on the right intake system

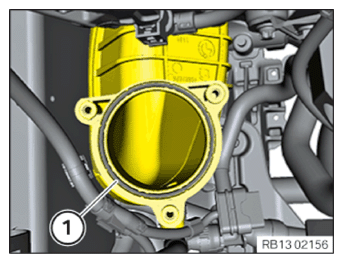

• Replace the seal (1).

Parts:  Gasket.

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare the throttle body

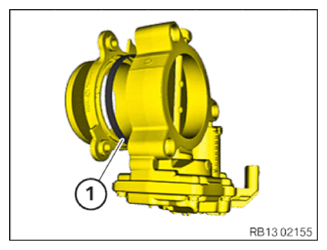

• Replace the seal (1).

Parts:  Seal

Courtesy of BMW OF NORTH AMERICA, INC.

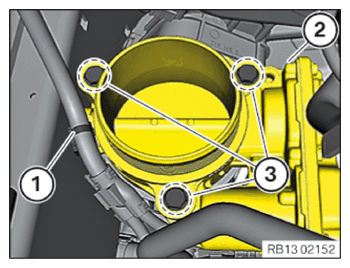

• Position throttle body (2).
• Tighten down screws (3).

• Attach (1) the cable clip.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Raise vehicle.

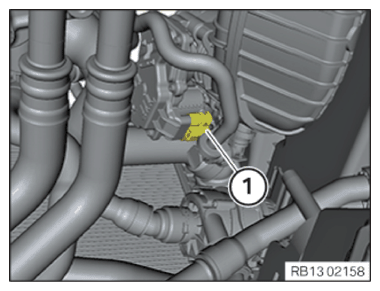

• Check the plug connection (1) for coolant residue. If necessary, clean with compressed air.
• Connect plug connection (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING OIL FILLER NECK .
• Refer to CLOSING THE COOLANT PUMPS .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to TIGHTENING THE LEFT FRONT-END STRUT .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
• Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
