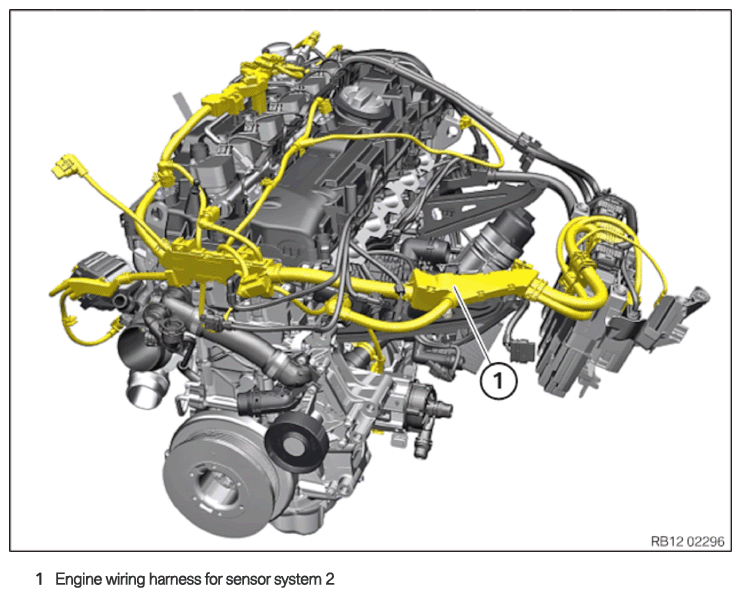

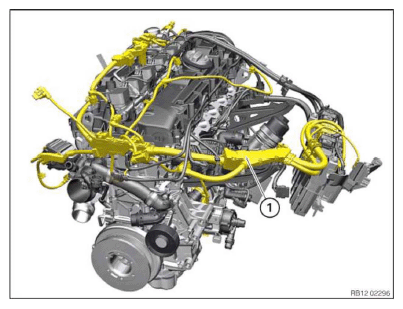

Installing the engine wiring harness for the sensor system 2
Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

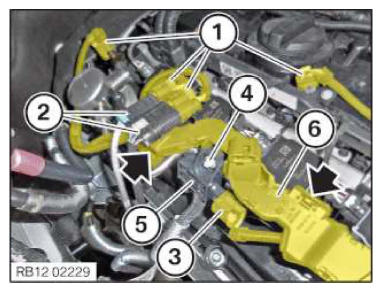

- Feed in the engine wiring harness (1)
for the sensor system 2 and install it.
- Feed in the engine wiring harness (6)
for the sensor system 2 and install it.
The locks (arrows) must engage audibly.
- Feed in differential pressure sensor (5) and position.
- Tighten down screw (4) .
TIGHTENING TORQUE SPECIFICATION
| Differential pressure sensor to holder | ||
|---|---|---|
| TS6X18 | Tightening torque | 3.5 Nm |
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Connect the connector (2)
with engine wiring harness (6)
for the sensor system 2 and lock it.
The connectors (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.

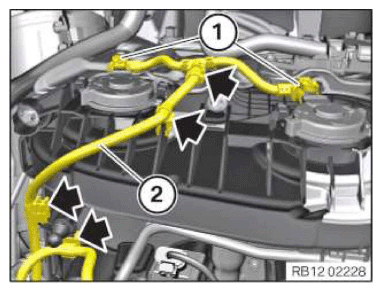

- Version A:
Feed in the engine wiring harness (2) for sensor system 2 and install it.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Secure the clamps (arrows).

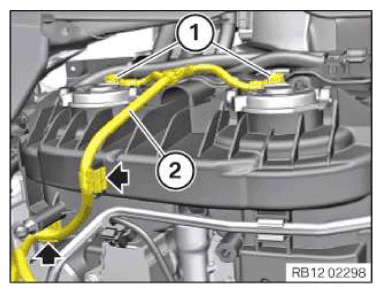

- Version B:
Feed in the engine wiring harness (2) for sensor system 2 and install it.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Secure the clamps (arrows).

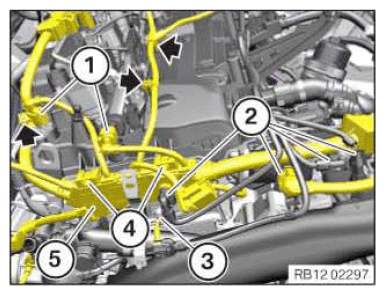

- Feed in the engine wiring harness (5) for sensor system 2 and install it.
- Ensure that locks (4) engage audibly.
- Tighten nut (3) .
TIGHTENING TORQUE SPECIFICATION
| Front ground cable to cylinder head | ||
|---|---|---|
| M6 | tightening torque | 8 Nm |
- Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed in and position auxiliary coolant pump (4) .
- Feed in and position retaining bracket (3) .
- Tighten nut (2) .
TIGHTENING TORQUE SPECIFICATION
| Electric coolant pump to holder | ||
|---|---|---|
| M6 | tightening torque | 8 Nm |
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

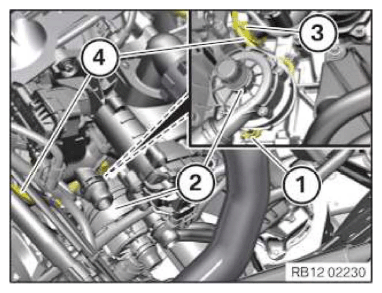

- Feed in the engine wiring harness (4) for the sensor system 2 and install it.
- Secure clamps (3) .
- Connect connector (1)
with the electric coolant pump (2)
and lock.
The connector (1) must engage audibly.
