Remove rear bumper panel
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
NOTE:
TECHNICAL INFORMATION
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANELS .
- Refer to REMOVING THE TRIM FROM THE LEFT AND RIGHT WATER CHANNELS .
- Refer to REMOVING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANEL .
NOTE:
Perform the steps on the left and right side.

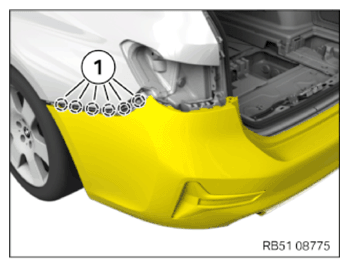

- Loosen screws (1).NOTE: Perform the steps on the left and right side.

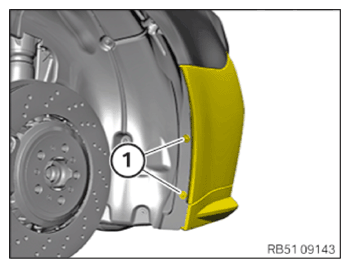

- Loosen screw (1).

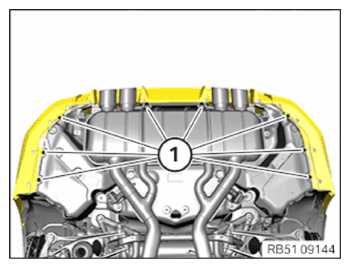

- Loosen screws (1).NOTE: Perform the steps on the left and right side.

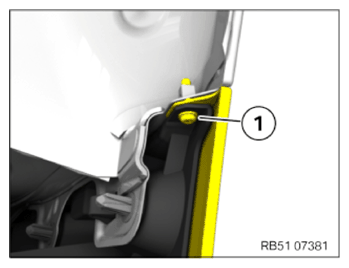

- Loosen screw (1).NOTE: Perform the steps on the left and right side.

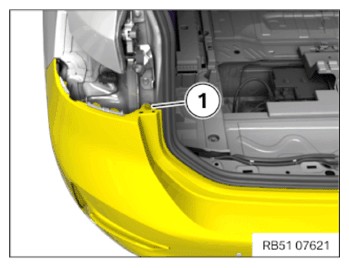

- Loosen the bumper cover at the detents (1).

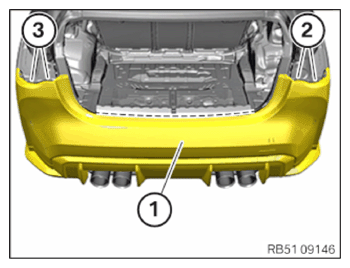

- Loosen the bumper cover (1) at the detents (2).
- Loosen the bumper cover (1) from the right beginning at the detents in the area of the dotted line.
- Release the bumper cover from the detents (3).
- Guide out the bumper cover (1) towards the rear with the help of a support person.
- Unlock available plug connections and disconnect.
- Remove bumper cover (1).
