Removing the loading edge trim

Preliminary work

• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .

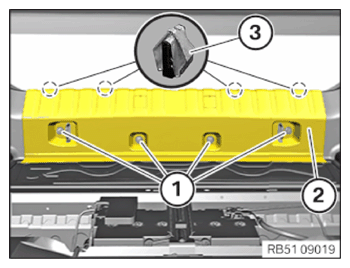

• Loosen the expanding rivet (1).
• Unclip the loading edge trim from the clamps upwards.
• Feed out the loading edge trim at the tailgate seal and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.
