Installing the seat-belt extender
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.

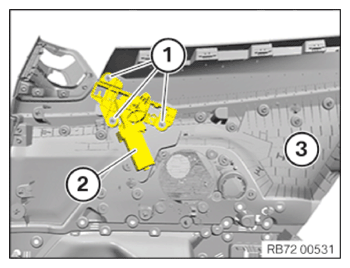

- Position seat belt extender (2) as shown on the side trim panel (3).
- Tighten nuts (1).

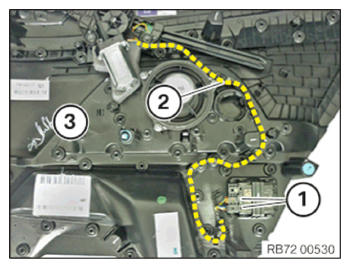

- Clip the cable marked in yellow (2) into the side trim panel (3).
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING SEAT BELT EXTENDER HAND .
- Refer to INSTALLING REAR TRIM PANEL .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
- Refer to INSTALLING C-PILLAR TRIM PANEL .
- Refer to INSTALLING BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
