Installing C-pillar trim panel

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: RISK OF DAMAGE
Damage to the head airbag.
Improper use of a tool when removing the trim panel may damage the head airbag.

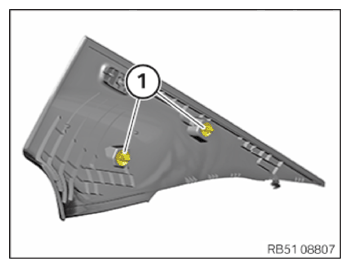

Check the clips (1) for damage and replace where required.

Courtesy of BMW OF NORTH AMERICA, INC.

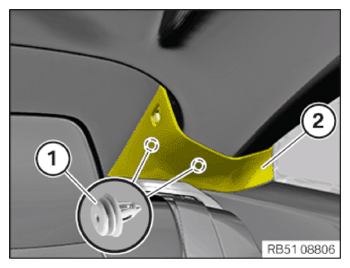

Position the C-pillar trim panel (2) and clip in at the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

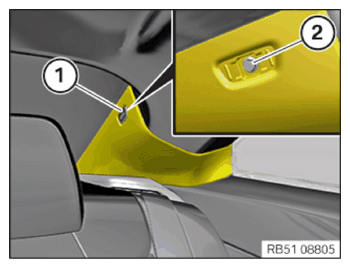

Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATIONS

Clip in the cover (1) of the C-pillar trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
