Luggage compartment wheel arch trim panel

Preliminary work

• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING THE UPPER LUGGAGE COMPARTMENT TRIM PANELS .

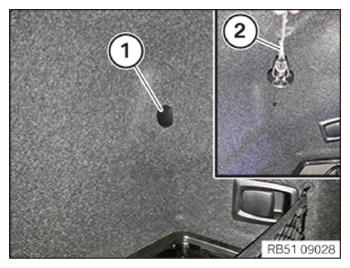

• Unclip convertible top compartment lid for emergency release (1) from the luggage compartment wheel arch trim panel.
• Detach the cable (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

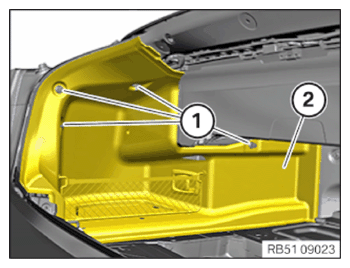

• Loosen the expanding rivet (1).
• Feed out the luggage compartment wheel arch trim panel (2) towards the inner side.

  Courtesy of BMW OF NORTH AMERICA, INC.

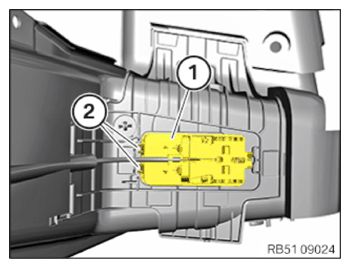

• Release the lever for backrest release (1) on the latch mechanisms (2) and feed out from the luggage compartment wheel arch trim panel.
• Remove luggage compartment wheel arch panel.

  Courtesy of BMW OF NORTH AMERICA, INC.
