Body Equipment -- Repair M4 (2 Of 2) (G82 & G83)
>>
51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 165 Removing and installing/replacing trunk trim panel, top (M4 Convertible)
>>
Removing the upper luggage compartment trim panels
Removing the upper luggage compartment trim panels

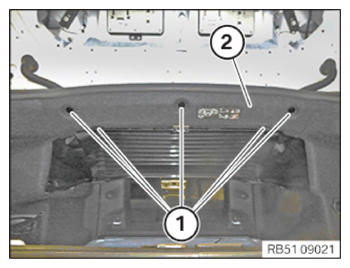

Loosen the expanding rivet (1).
Remove the luggage compartment trim panel (2) by pushing it downwards.
Courtesy of BMW OF NORTH AMERICA, INC.

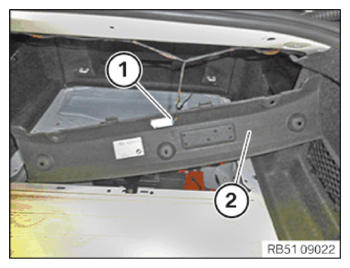

Unlock plug connection (1) and disconnect.
Remove luggage compartment trim panel (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
