Install B-pillar trim panel

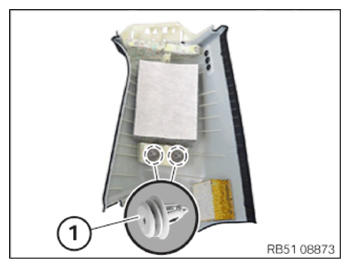

• Check clips (1) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

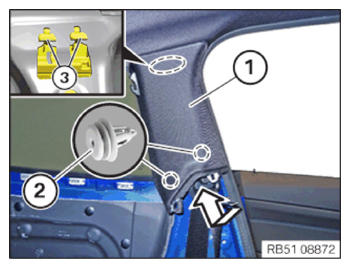

• Feed the B-pillar trim panel (1) into the guides (3) in arrow direction and under the lip of the edge protection.
• Clip in the B-pillar trim panel (1) into the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
• Refer to INSTALLING BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
