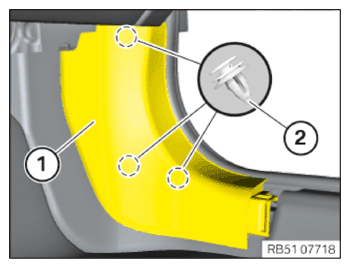

Installing side trim panel in footwell on right A-pillar

• Check if clips (2)  are present and check them for damage.

  Damaged or missing clips (2)  must be replaced.

• Position the side trim panel (1)  correctly and clip in at the clips (2)  .
• Make sure that the side trim panel (1)  is correctly fitted against edge protection.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING INSIDE RIGHT DOOR SILL COVER STRIP .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
