Body Equipment -- Repair M4 (2 Of 2) (G82 & G83)
>>
51 45 Trim Panel, Instrument Panel
>>
51 45 195 Removing and installing instrument trim panel trim at bottom right (M4 2021-2023)
>>
Install right footwell trim
Install right footwell trim
Connect associated connector.

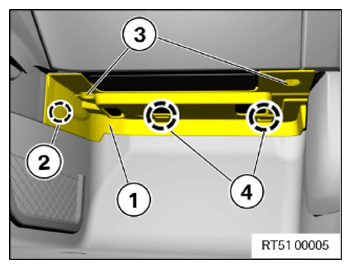

Hook footwell trim (1) into guides (4) and fold it upwards.
Insert footwell trim (1) into guide (2) of the center console.
Position locks (3) correctly and turn them by 90 degrees.
