Installing the module bracket on the front door

Check

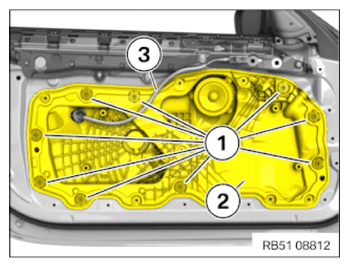

• Check the seal (1) on the module bracket on the front door for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The seal (1) is damaged.

  Measure

• Replace the module bracket on the front door.
• Position the module bracket (2) on the front door. While doing so, guide in the Bowden cable (3) for the inner door opener into the module bracket (2) on the front door.
• Lock the bayonet closure (1) by rotating.

  Courtesy of BMW OF NORTH AMERICA, INC.

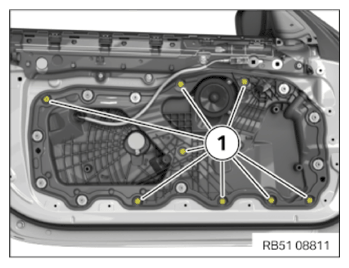

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Module bracket to front door
  Oval-head screw M6	tightening torque	9 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

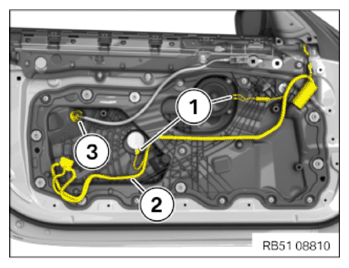

• Install the rubber grommet (3) of the Bowden cable for the inner door opener.
• Clip in the wiring harness (2) to the module bracket on the front door.
• Connect and lock both connectors (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
