Install front door trim panel

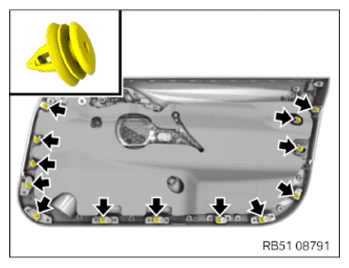

Check the clips (arrows) for damage; if necessary, replace them.

Courtesy of BMW OF NORTH AMERICA, INC.

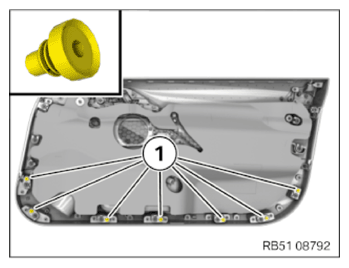

Check stop pad (1) for damage; if necessary, replace it.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Push the inner door opener to the closed direction.

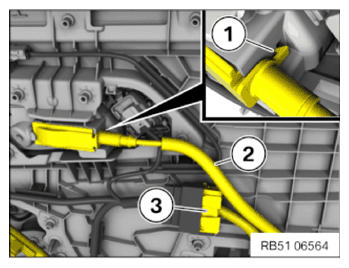

Guide in the Bowden cable for the inner door opener (2) and clip it in with detent (1).
Connect connectors (3) and lock.

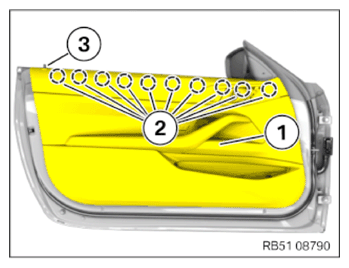

Guide in front door trim panel (1) from above over operating rod (3) and clip it in with detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

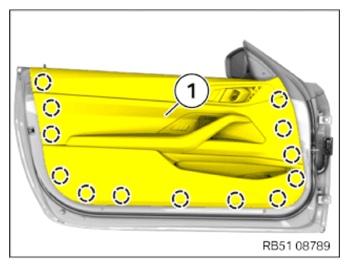

Clip in door trim panel (1) at the marked positions.

Courtesy of BMW OF NORTH AMERICA, INC.

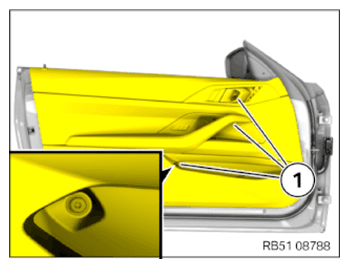

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Courtesy of BMW OF NORTH AMERICA, INC.

Check

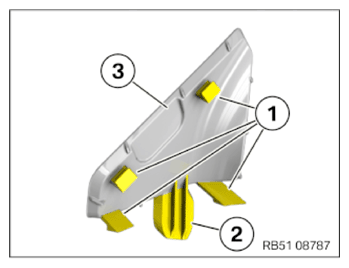

Check detents (1) and guide (2) on cover (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (1) or guides (2) are damaged.

Measure
- Replace cover (3).

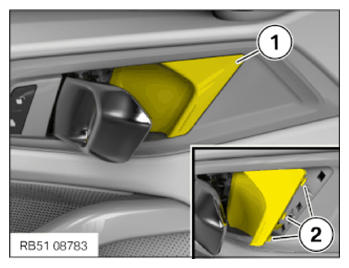

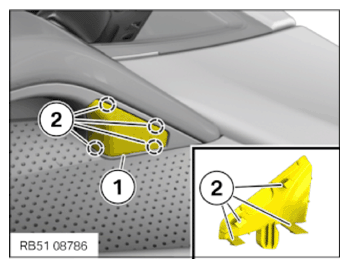

Mount cover (1) and clip it in with detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

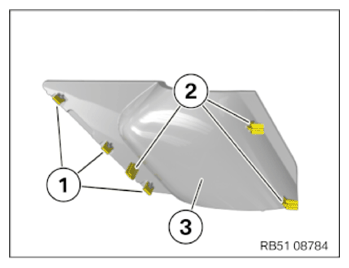

- Check detents (1) and guides (2) on the cover of door opener (3) for damage.
Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (1) or guides (2) are damaged.

Measure
- Replace the cover of door opener (3).
Pull the door opener.
Feed in the cover of door opener (1) with the guides and clip it in with detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.
