Install the center console

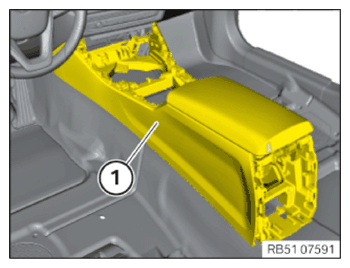

• Install the center console (1), feeding in the wiring harness while doing this.
• Feed in the center console (1) at the dashboard and correctly position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the wiring harness on the center console (1) and connect and lock any plug connections that are there.

  Courtesy of BMW OF NORTH AMERICA, INC.

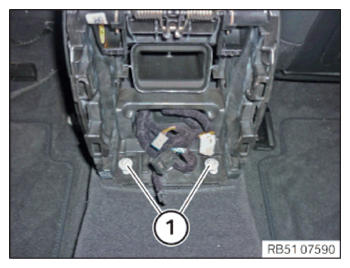

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Center console on tunnel
  Hexagon screw M6x18	tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

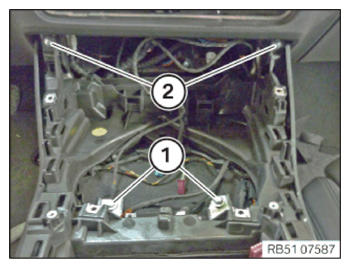

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Center console at the dashboard
  Oval-head screw	tightening torque	1.8 Nm

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Center console on tunnel
  Hexagon screw M6x18	tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CUP HOLDER .
