Body Equipment -- Repair M4 (1 Of 2) (G82 & G83)
>>
51 16 Mirrors, Decorative Strips, Ashtrays, Consoles
>>
51 16 163 Removing and installing rear center console trim (M4 2021-2023)
>>
Installing the rear center console trim
Installing the rear center console trim

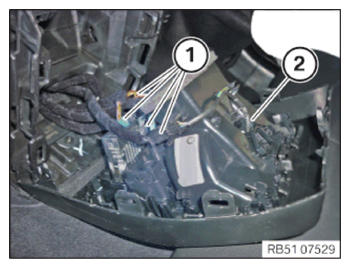

Install the center console trim (2).
Connect connectors (1) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.

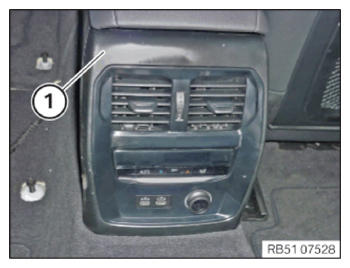

Position center console trim (1) and engage at lateral detents.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
