Installing the trim on the upper windshield panel

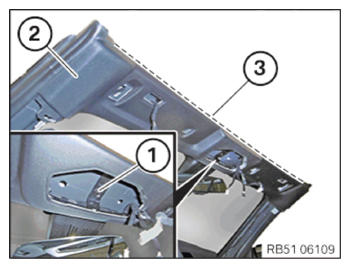

• Position the trim (2) in the area (3) and clip it in.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Windshield panel trim to windshield frame
  Screw	Tightening torque	3.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT AND RIGHT FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING THE SUN VISORS AND COUNTER SUPPORT ON THE LEFT AND RIGHT .
