Fit the roof lining
Precondition
The front seats have been fully adjusted towards the bottom.
The front seat backrests have been fully adjusted towards the rear.
The rear seat backrest is folded down toward the front.

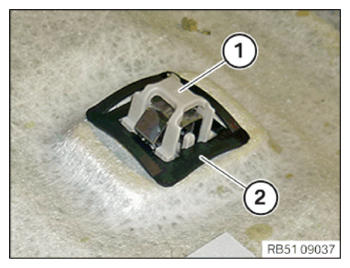

- Install the end support of the sun visors (1)
in the headlining and mount it with clamps (2)
.

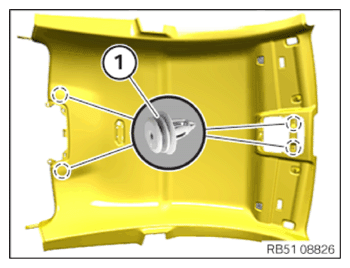

- Check the clips (1)
on the headlining for damage.
Defective or missing clips (1) must be replaced.
- Lift the headlining (1) with the help of a support person through the cutout of the windshield into the vehicle.
- Insert the headlining (1) with the help of an auxiliary person onto the respective edge protection.

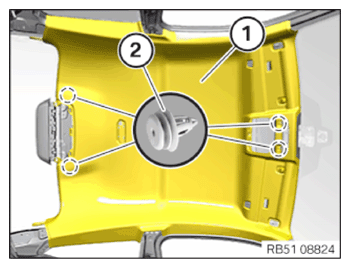

- Clip in headlining (1)
on the clips (2)
.

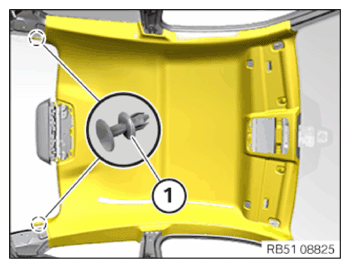

- Secure expanding rivet (1)
.
Follow-up work
- Refer to TRIMMING OF THE 3RD INSTALLING THE BRAKE LIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL .
- Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS AND COUNTER SUPPORT .
- Refer to REPLACING THE SPACER .
- Refer to REPLACEMENT: PREPARE WINDSHIELD .
- Refer to INSTALLING THE WINDSHIELD RUBBER FRAME .
- Refer to CHECKING SIGN .
- Refer to INSTALLING WINDSHIELD .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT GUTTER STRIP ON THE WINDSHIELD .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE KAFAS CAMERA .
- Refer to INSTALLING INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to CALIBRATING KAFAS CAMERA .
