Replace the spacer
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Remove adhesive residue on the body when installing the windshield and clean the adhesive area.

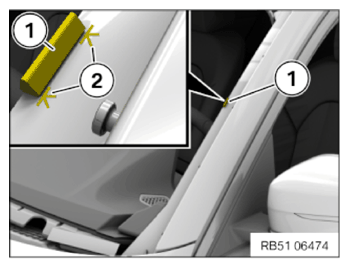

- Completely remove the existing spacer (1)
.
- Bond the spacer (1)
in the center of the embossed mark (2)
on the body side.
Parts:
Spacer
 Courtesy of BMW OF NORTH AMERICA, INC.
|
