Installing mid-range speaker at the rear of the side trim panel

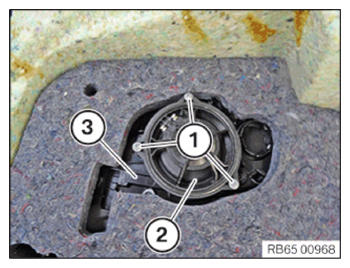

• Insert the mid-range speaker (2)  into the side panel (3)  and position it correctly.
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Loudspeaker on the door/trim panel
  Screw	tightening torque	2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• If necessary, position the acoustic fleece correctly.

Follow-up work

• Refer to INSTALLING THE SPEAKER COVER ON THE SIDE TRIM PANEL .
• Refer to INSTALLING THE ARMREST ON THE SIDE TRIM PANEL .
• Refer to INSTALLING THE SEAT-BELT EXTENDER .
• Refer to INSTALLING SOUND INSULATION ON THE SIDE TRIM PANEL .
• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE UPPER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
• Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
• Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
• Refer to REMOVING REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
