Install rear trim panel

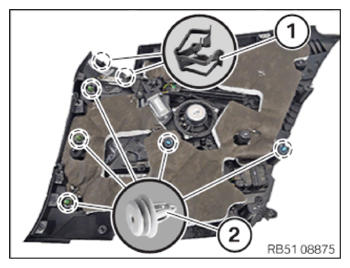

• Check clamps (1) for damage; replace if necessary.
• Check the clips (2) for damage and replace where required.

  Courtesy of BMW OF NORTH AMERICA, INC.

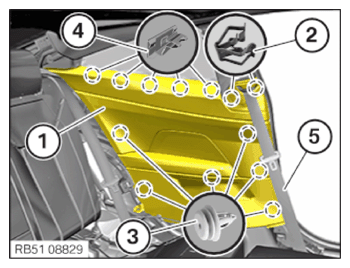

• Connect and lock all the connectors at the rear side trim panel (1) of the wiring harness and disconnect it.
• Insert upper seat belt (5).
• Position the rear side trim panel (1) and clip at the clamps (4).
• Clip in the rear side trim panel (1) at the clips (3).
• Clip in the rear side trim panel (1) at the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

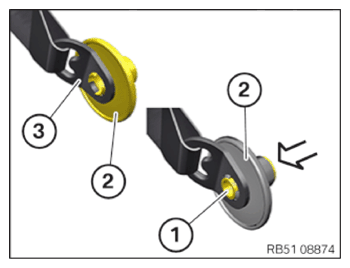

• Clip in the cover (2) of the strap fitting (3) to the strap fitting (3).
• Slide the sleeve (1) in the cover (2) of the seat belt end fitting (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

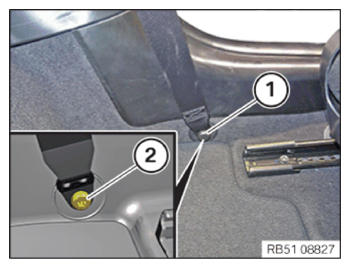

• Position the seat belt end fitting correctly.
• Tighten down screw (2).
• Clip in the cover cap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
• Refer to INSTALLING BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
