Install fan cowl

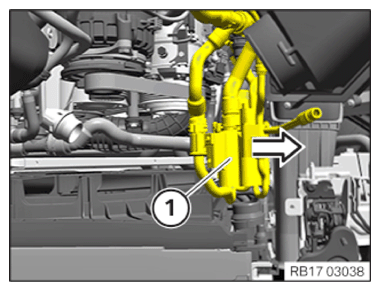

• Along with a support person, carefully  press the air conditioning condenser (1) in the arrow direction and hold it

  Courtesy of BMW OF NORTH AMERICA, INC.

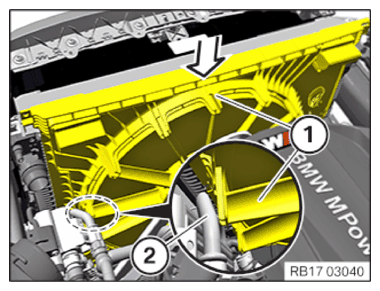

• Guide in fan cowl (1) carefully  in the arrow direction and install
• Make sure that the fan cowl (1) is guided past the coolant pipe (2) of the air conditioning condenser

  Courtesy of BMW OF NORTH AMERICA, INC.

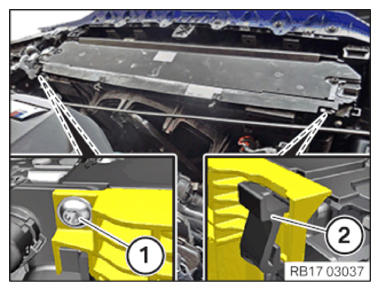

• Make sure that the lock (2) engages audibly
• Tighten down screw (1)

Courtesy of BMW OF NORTH AMERICA, INC.

• Check the sealing ring (1) of the coolant line (2) for damage and replace if necessary

  Courtesy of BMW OF NORTH AMERICA, INC.

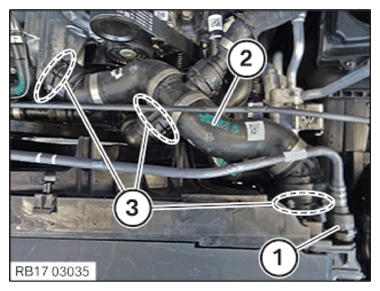

• Connect and lock coolant line (2)

  The coolant line (2) (3) must engage audibly in the marked areas

• Connect and lock coolant ventilation line (1)

  The coolant ventilation line (1) must engage audibly

  Courtesy of BMW OF NORTH AMERICA, INC.

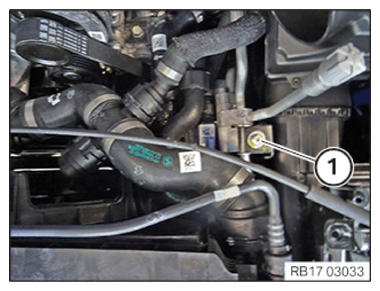

• Tighten down screw (1)

Courtesy of BMW OF NORTH AMERICA, INC.

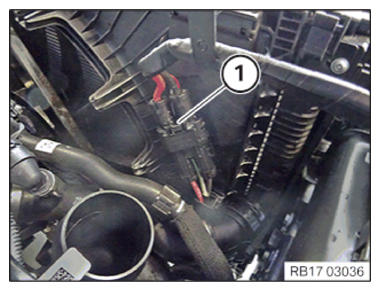

• Connect connectors (1) and lock

  The connector (1) must engage audibly

  Courtesy of BMW OF NORTH AMERICA, INC.

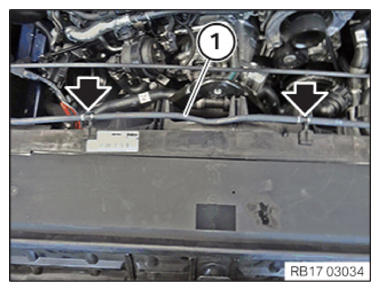

• Secure coolant ventilation line (1) in the holders (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
