Installing the pedal mechanism

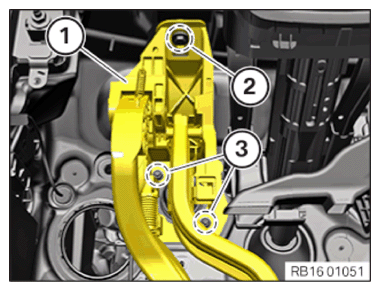

• Install pedal mechanism (1)
• Replace the screw (2)

  Parts:  Screw

• Tighten down screw (2)

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nuts (3)

  Parts:  Nuts

• Tighten nuts (3)

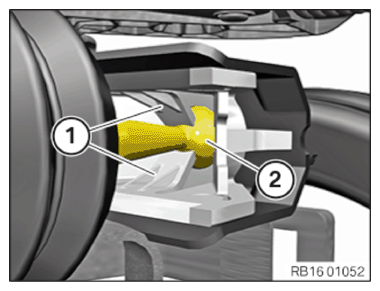

• Engage the brake pedal (1) in the arrow direction with the brake booster

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that the bolt of the brake booster (2) engages with the holder of the brake pedal (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CLUTCH MASTER CYLINDER .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
