Installing the clutch master cylinder

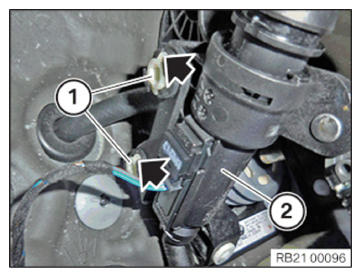

Install the clutch master cylinder (2)
Replace bolts (1)
Parts: bolt
Insert the bolts (1) and turn clockwise by 90°
The lugs (arrows) must lock in place in the groove

Courtesy of BMW OF NORTH AMERICA, INC.

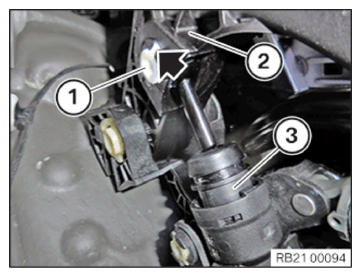

Insert clutch master cylinder (3) into clutch pedal (2)
Replace bolts (1)
Parts: bolt
Insert the bolts (1) and turn clockwise by 90°
The lug (arrow) must lock in place in the groove

Courtesy of BMW OF NORTH AMERICA, INC.

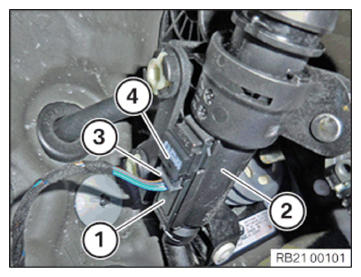

Protect the clutch switch (1) from incorrect assembly
The clutch switch (1) must engage audibly
Engage connector (3) in plug connection (4)

Courtesy of BMW OF NORTH AMERICA, INC.

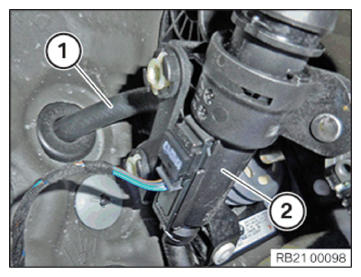

Connect the supply hose (1) on the clutch master cylinder (2)

Courtesy of BMW OF NORTH AMERICA, INC.

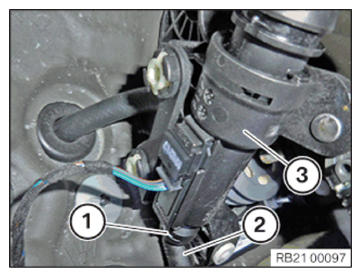

Connect the hydraulic line (2) on the clutch master cylinder (3)
Clamp (1) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.

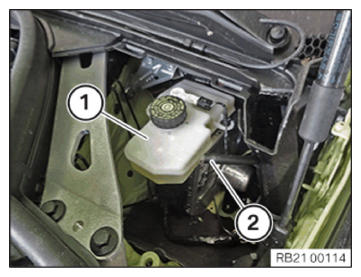

Insert the supply hose (2) on the expansion tank (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Connecting the bleeder unit for the brake fluid

To guarantee a correct vent of the brake system, the following procedure must be observed!
Top up the brake fluid in the expansion tank to the lower edge of the thread (1) with new brake fluid
Vent the hose of the bleeder unit before connecting

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Use only BMW-approved brake fluids; Please see approved BMW Fluid Capacities tab for the selected vehicle.

NOTE: RISK OF DAMAGE
Paint damage
Mechanical or chemical action may lead to paint damage

Courtesy of BMW OF NORTH AMERICA, INC.

Follow the operating instructions of the respective equipment manufacturer

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the dust cap from the bleed valve (1)
Connect the vent hose to the bleed valve (1)
Open bleed valve (1) and purge it until clear, bubble-free brake fluid emerges
Close bleed valve (1)
Switch off bleeder unit or remove from brake fluid expansion tank
Correct brake fluid level in expansion tank
Disconnect the bleeder unit for the brake fluid

NOTE: RISK OF DAMAGE
Paint damage
Mechanical or chemical action may lead to paint damage

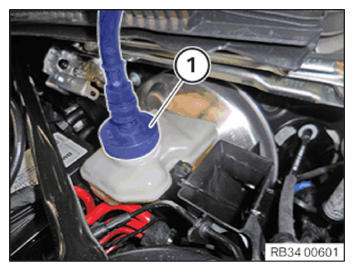

Switch off bleeder unit (1) and remove it from the brake fluid expansion tank
Check the brake fluid level and adjust it to the maximum mark if necessary

Courtesy of BMW OF NORTH AMERICA, INC.
Check the seal of sealing cap (1) for correct fit and damage, replace if necessary
Shut sealing cap (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
