Installing high pressure line between high pressure pump and rail for cylinders 1 to 3

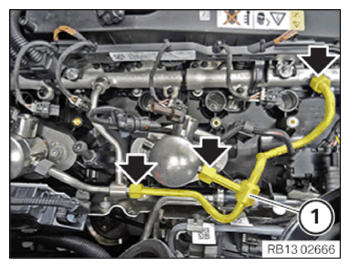

- Feed in and install the high pressure line (1)
- Tighten the union nuts (arrows) with the special tool 0 495 280 (13 0 140)
TIGHTENING TORQUE SPECIFICATIONS
| High pressure line between the rail and the high pressure pump | ||
| M14x1.5 | tightening torque | 33 Nm |
Follow-up work
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
