Install tension strut on shock tower
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted
Driving without the strut brace/front-end strut or tension strut is not permitted

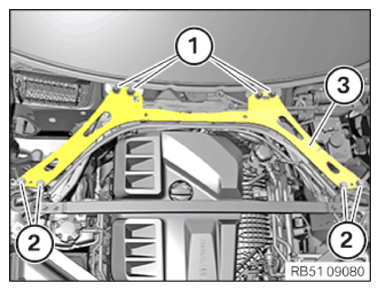

- Install tension strut (3)
- Replace screws (1)
Parts: Screws
- Tighten down screws (1)TIGHTENING TORQUES SPECIFICATION
Tension strut on firewall M10x35 screw Replace screws Tightening torque 56 Nm Angle of rotation 90° - Replace screws (2)
Parts: Screws
- Tighten down screws (2)TIGHTENING TORQUES SPECIFICATION
Tension strut to shock tower M10x70 screw Replace screws Tightening torque 56 Nm Angle of rotation 90°
Follow-up work
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
