Installing windshield panel cover

NOTE: RISK OF DAMAGE
Damage caused by water ingress into the vehicle
Water ingress into the vehicle may result in damage to components, malfunctions and corrosion

Ensure correct installation of the components
Only use undamaged components

NOTE: TECHNICAL INFORMATION
Before installing the cowl cover, it is imperative to check the correct routing and firm fit of the 48V line
An incorrectly laid or attached 48V line can be damaged by the wiper kinematics

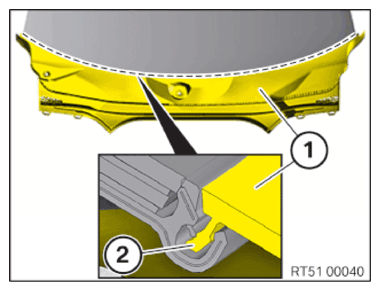

Press the cowl cover (1) into the detent (2) beginning from the side

Courtesy of BMW OF NORTH AMERICA, INC.

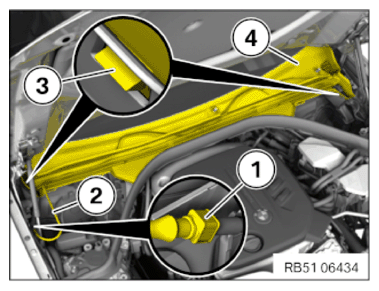

Clip in the cowl cover (4) with the detents (3)
Position the washer fluid hose (2) and connect the snap fastener of the washer fluid hose (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
