Installing the oil-level sensor

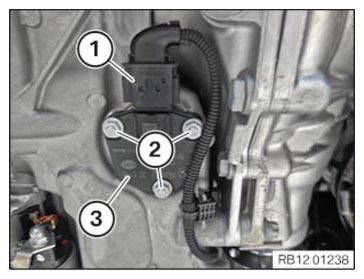

- Install the oil-level sensor (3).
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Oil-level sensor to oil sump | ||
| M6 | Joining torque | 2 Nm |
| tightening torque | 8.5 Nm | |
Follow-up work
- Refer to TIGHTENING THE OIL DRAIN PLUG .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to TOPPING UP THE MOTOR OIL .
- Refer to TIGHTENING THE OIL FILTER CAP .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CHECKING ENGINE OIL LEVEL .
