Install the wiring harness section for sensor system 2

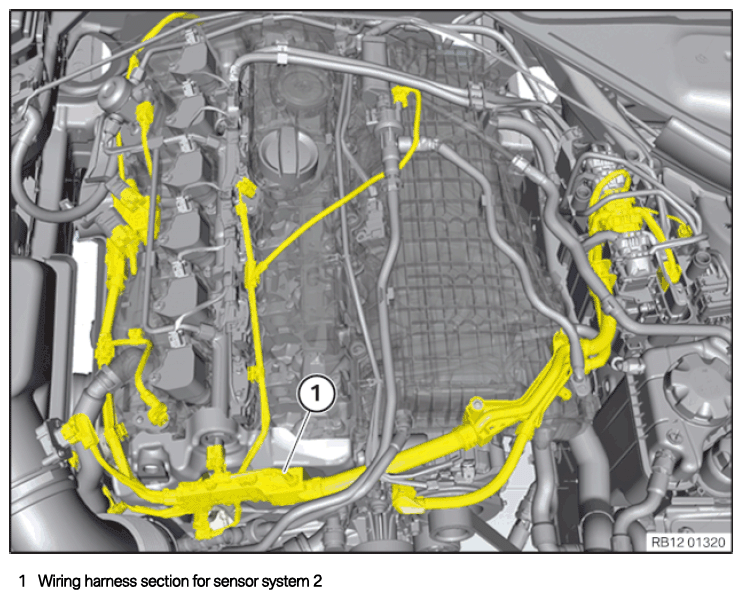

Wiring harness section for sensor system 2
Precondition
- Route the wiring harness section (1) and fasten it with the clamps.
- Connect and audibly lock the connector of the DME control unit.
- Connect and audibly lock the connector of the integrated supply module (PDM).
- Connect and audibly lock the connector of the Valvetronic servomotor.
- Connect and audibly lock the connector of the rail pressure sensor.
- Connect and audibly lock the connector of the hot film air mass meter.
- Connect and audibly lock the connector of the camshaft sensor of the intake camshaft.
- Connect and audibly lock the connector of the camshaft sensor of the exhaust camshaft.
- Connect and audibly lock the connector of the front oxygen sensor.
- Connect and audibly lock the connector of the monitoring oxygen sensor.
- Connect and audibly lock the connector on the high pressure pump.
- Connect and audibly lock the connector of the heating element on the vent hose.
- Connect and audibly lock the connector of the electrical controller drive for the wastegate valve.
- Connect and audibly lock the connector of the VANOS solenoid actuator.
- Mount the cable channel on the intake plenum.
- Tighten down screws (3) .
TIGHTENING TORQUES SPECIFICATION
| Cable duct to intake plenum | ||
| Tightening torque | 4 Nm | |
- Mount the tank ventilation line (2) on the intake plenum.
- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Tank vent line to intake plenum | ||
| Oval-head screw | Tightening torque | 3 Nm |
Follow-up work
- Refer to CONNECTING THE CONNECTOR WITH THE DME CONTROL UNIT AND THE POWER DISTRIBUTION BOX (PDM) .
- Refer to INSTALLING COVER FOR THE DME CONTROL UNIT .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING SOUND INSULATION AT THE CENTER OF THE FIREWALL UPPER PART .
- Refer to INSTALLING THE TENSION STRUT ON THE STRUT TOWER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING ACOUSTIC COVER .
