Install charge air line

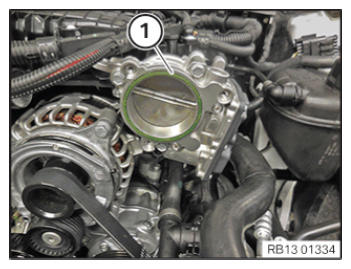

• Replace seal (1).

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

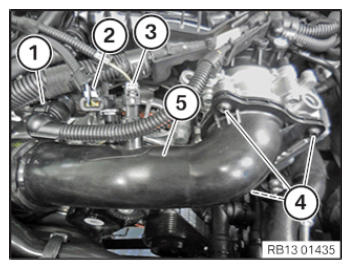

• Insert and install charge air line (5).
• Tighten down screws (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Charge air line to throttle valve
  M6x30	tightening torque	8 Nm

• Connect and lock the connector (3).
• Connect and lock the connector (2).
• Connect and lock the connector (1).

  All connectors must audibly engage.

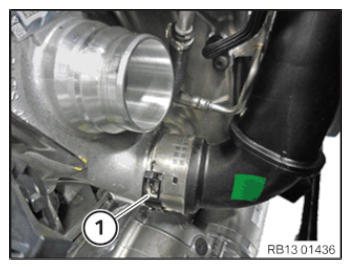

• Connect charge air line (1) and lock.

  The charge air line (1) must snap in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CLEAN AIR PIPE .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
